Changing radio frequencies

There are two ways to change radio frequencies for a dual band SP100 GNSS receiver. The first way is using the Web Interace:

1. Log into the web interface.

2. Once logged in, click Radio on the left vertical panel.

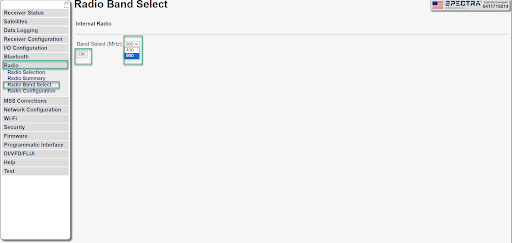

3. Click Radio Band Select

4. Click OK once the frequency is selected.

The second method for changing radio frequencies is using the Spectra Geospatial Origin field software. To learn more about changing frequencies using the Origin software, contact your local dealer.
